MIL-DTL-21248C

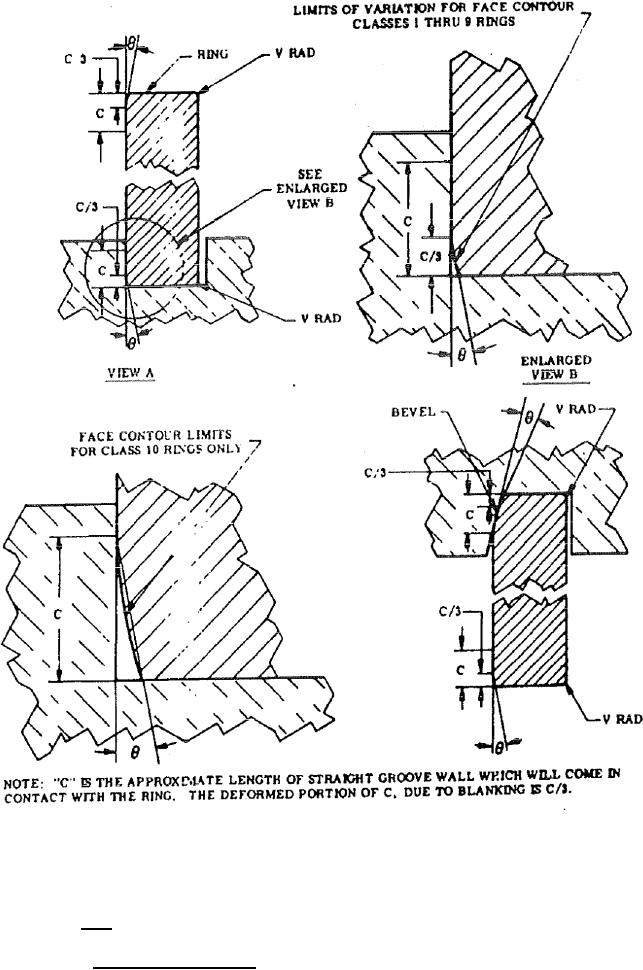

FIGURE 12. FACE CONTOUR LIMITATIONS
(SECTIONAL VIEW OF RING TAKEN AT LARGEST SECTION OF FIGURES 1 THROUGH 10)
3.5.4.2 Dish.
3.5.4.2.1 Type I and Type III rings. The dish (see Figure 13) of Type I and Type III rings shall
not exceed the dimensions specified in Table XII for the applicable ring thickness.
24
