MIL-DTL-27426C
c. Axial deflection. The maximum stress on a ring, which is subjected to a
uniform twisting moment, is a tensile stress that occurs at the inner corner of the
ring. This stress makes the ring have a tendency to grow in diameter and become
dished. This moment is caused when the compressive yield strength of the groove
material is exceeded as illustrated in Figure 2.

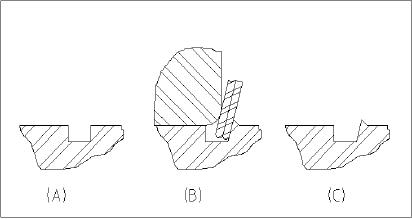

FIGURE 2.
Axial deflection.
12
